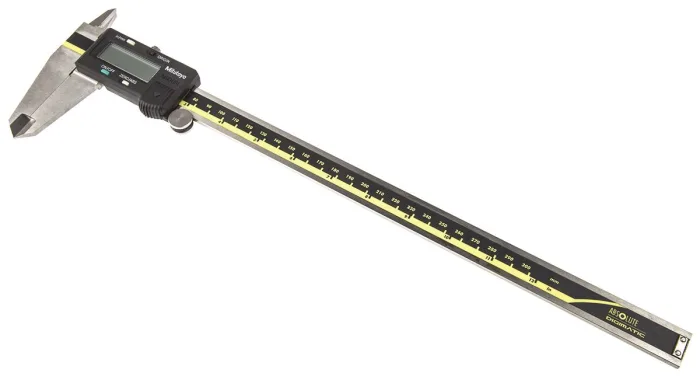

Mitutoyo 500-173-30 Digital Caliper 300mm

Mitutoyo 500-173-30 Digital Caliper 300mm | Solo SIS

The Mitutoyo 500-173-30 ABSOLUTE Digimatic Digital Caliper is a professional precision measuring instrument designed for accurate outside, inside, step and depth measurements. It provides a 0–300 mm / 0–12 inch measuring range, 0.01 mm / 0.0005" resolution and ±0.03 mm / ±0.0015" accuracy, making it suitable for industrial inspection, machining, manufacturing and quality-control applications.

SKU: MITUTOYO 500-173-30

Available on Request

Request Product Price

This product is available on request. Send your requirement and our team will contact you with price and availability.

Product Details

The Mitutoyo 500-173-30 is part of the Mitutoyo Series 500 ABSOLUTE Digimatic Caliper range. Its 300 mm capacity makes it suitable for measuring larger workpieces where a standard 150 mm or 200 mm caliper may not provide sufficient capacity.

The ABSOLUTE encoder system retains the established absolute origin, reducing the need to reset the instrument when switching it on. The ZERO/ABS function allows the display to be zeroed at any position for comparative measurements.

The caliper can perform outside, inside, step and depth measurements and provides a clear digital LCD readout.

Vernier Caliper

Mitutoyo 500-193-30 ABSOLUTE Digimatic Digital Caliper 150mm / 6", 0.01mm Resolution

The Mitutoyo 500-193-30 ABSOLUTE Digimatic Digital Caliper is a precision measuring instrument designed for accurate outside, inside, step and depth measurements. With a 0–150 mm / 0–6 inch measuring range, 0.01 mm / 0.0005" resolution and ±0.02 mm / ±0.001" accuracy, it is suitable for machining, engineering, manufacturing, inspection and quality-control applications.

Available on Request Request Price

Vernier Caliper

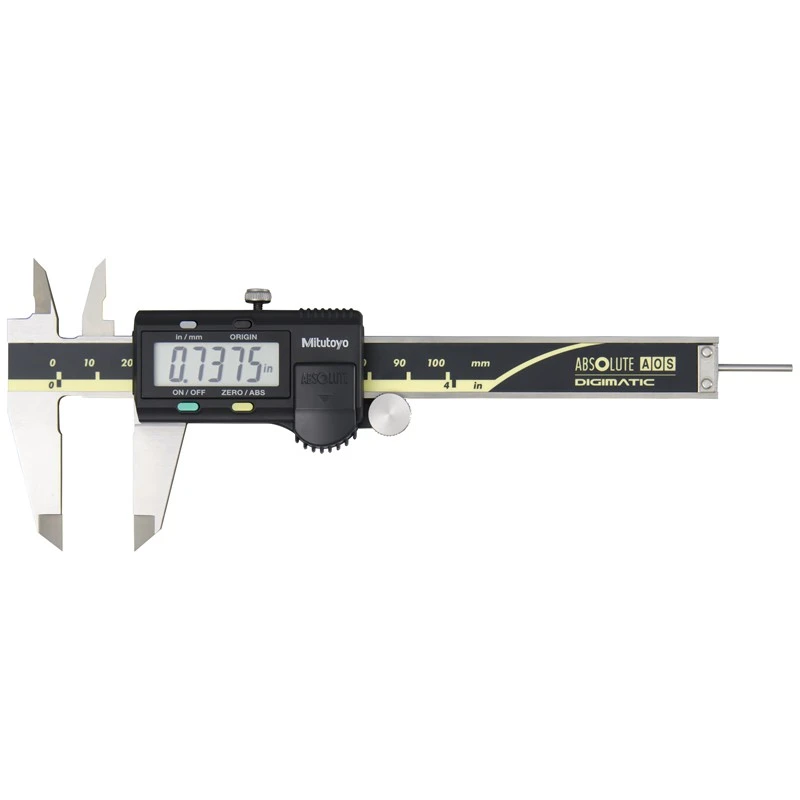

Mitutoyo 500-195-30 ABSOLUTE Digimatic Digital Caliper 100mm / 4", 0.01mm Resolution with Round Depth Bar

The Mitutoyo 500-195-30 ABSOLUTE Digimatic Caliper is a compact precision digital caliper designed for accurate dimensional measurement in machining, manufacturing, engineering and quality-control applications. It offers a 0–100 mm / 0–4" measuring range, 0.01 mm / 0.0005" resolution and ±0.02 mm / ±0.0010" accuracy. The model features a 0.075" round rod depth bar and does not have a measurement-data output port.

Available on Request Request Price

Vernier Caliper

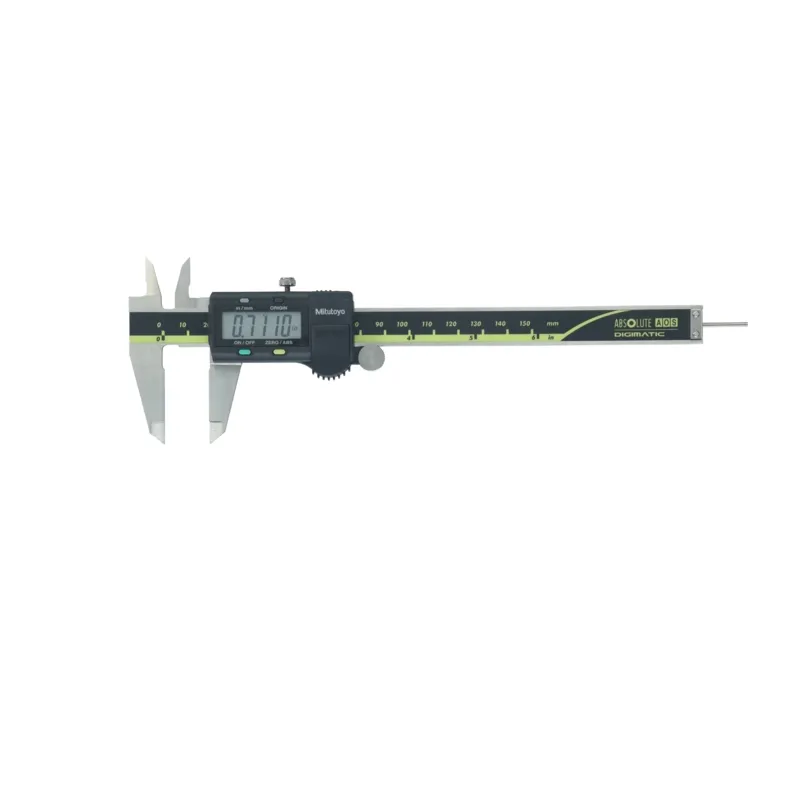

Mitutoyo 500-178-30 ABSOLUTE Digimatic Digital Caliper 150mm / 6" with SPC Output & Round Depth Bar

The Mitutoyo 500-178-30 ABSOLUTE Digimatic Caliper is a professional precision digital caliper for accurate outside, inside, step and depth measurements. It features a 0–150 mm / 0–6" measuring range, 0.01 mm / 0.0005" resolution, ±0.02 mm / ±0.001" accuracy, and a 0.075" round rod depth bar. The integrated SPC/data output allows measurement data to be transferred to compatible data-management systems.

Available on Request Request Price

Vernier Caliper

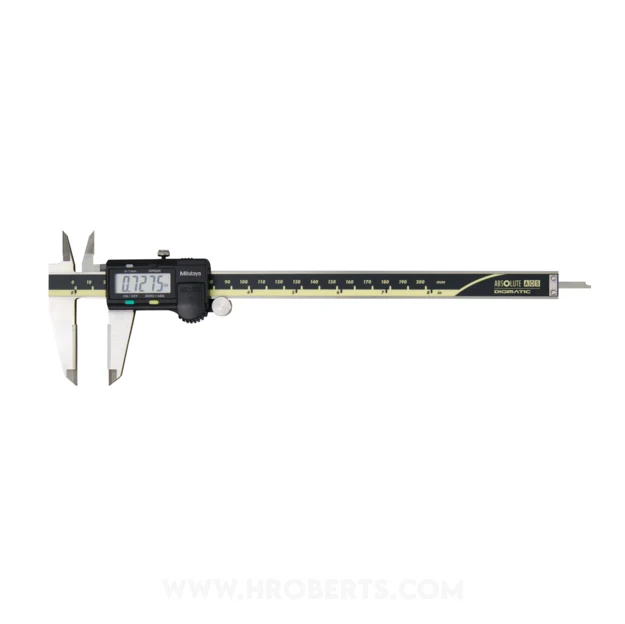

Mitutoyo 500-177-30 ABSOLUTE Digimatic Digital Caliper 200mm / 8", Carbide OD & ID Jaws with SPC Output

The Mitutoyo 500-177-30 ABSOLUTE Digimatic Caliper is a professional precision digital caliper designed for dimensional inspection in manufacturing, machining, engineering and quality-control applications. It offers a 0–200 mm / 0–8" measuring range, 0.01 mm / 0.0005" resolution and ±0.02 mm / ±0.0010" accuracy. Its carbide-tipped jaws are designed for both outside and inside measurements, while the SPC output enables measurement data transfer to compatible data-management systems.

Available on Request Request Price
